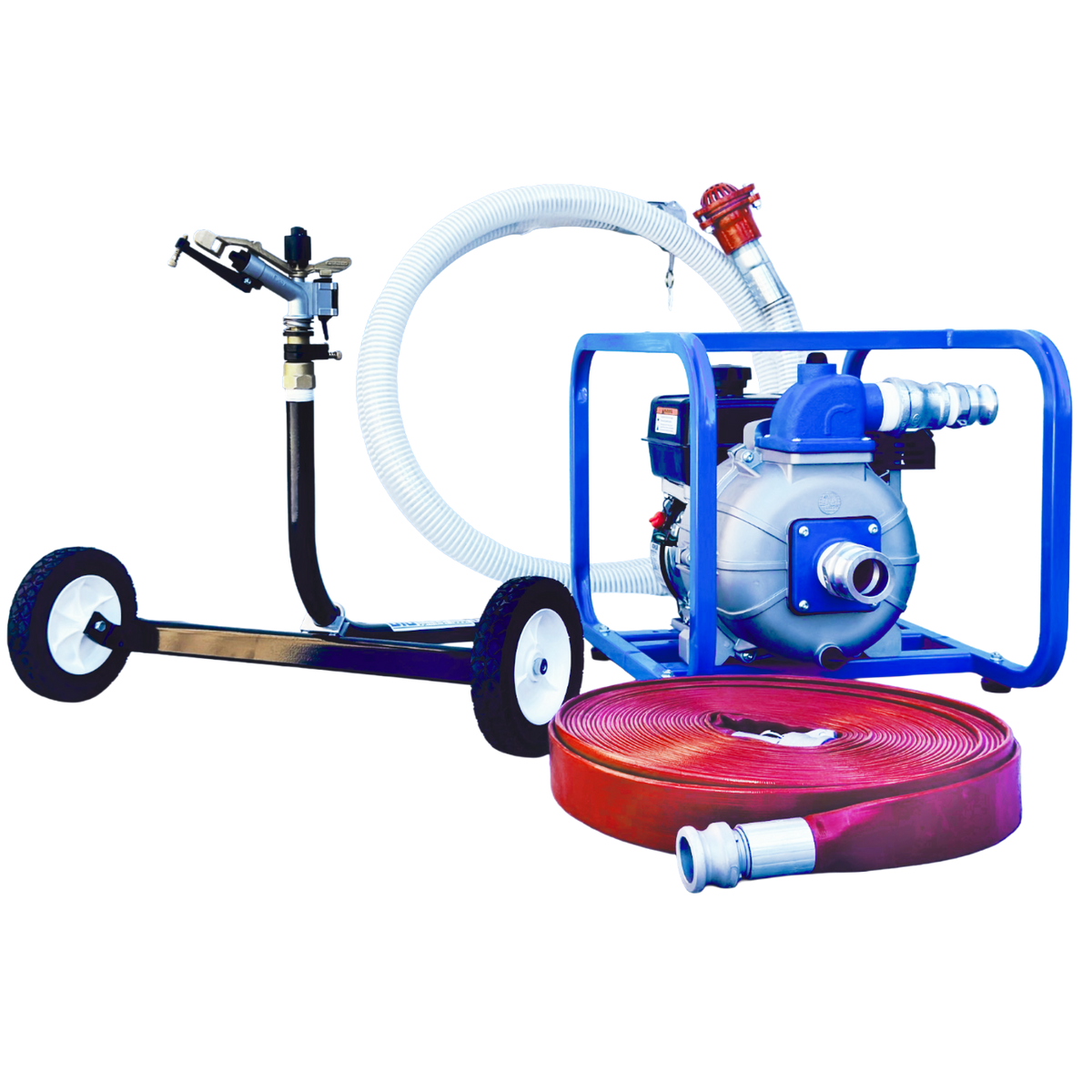

1000F Complete Irrigation Kit w/ Pump
SKU: 1000FPUMPKIT
$1,298.00
The Complete BigSprinkler Irrigation Kit ready to set up and start irrigating from your pond, reservoir, or stream in minutes! This kit includes our 1000F Sprinkler Cart that is capable of up to 120 ft. diameter wetted circle, 15 ft. of 2" suction hose with strainer, 100 ft. of heavy 1" discharge hose with quick connects, and aheavy duty high pressure pump. The pump is a reliable Honda 5.5HP GX Series Engine and self-priming high pressure 2" pump capable of providing high volumes and pressures up to 82 psi.
Our pre-assembled pump kits are quick and easy to setup! You can be irrigating in literally minutes from the time you recieve your kit. First, unroll and quick connect the 100 ft. hose provided, from the pump to the sprinkler cart, quick connect the 15 ft. suction hose provided, start the pump and watch the water fly! 1000F irrigation cart is supplied with quick connect fitting that attaches to the hose and a full range of nozzles so that you can meet your desired water pattern and application.
Price: $1,298.00
General Information
Specifications:
Sprinkler Cart Performance:
Flow Range: 5-25 Gallon per Minute
Coverage: Up to 120 Feet Diameter Wetted Circle
(See performance chart attachment at bottom of page)
Pump Performance:
Max Flow: 120 Gallons per Minute Open Discharge
Max Pressure: 86 PSI @ 5 Gallons per Minute
86 PSI @ 5 Gallons per Minute
82 PSI @ 10 Gallons per Minute
80 PSI @ 20 Gallons per Minute
75 PSI @ 30 Gallons per Minute
71 PSI @ 40 Gallons per Minute
**Pump and sprinkler performance may vary due to certain atmospheric conditions,
elevation, distance, etc. Pump performance data provided is at 5 feet suction lift.
Features and Benefits:
1000F Sprinkler Cart Information:
Heavy Duty 1" Steel Body w/ Solid Axle
Commercial Grade Full or Part Circle Sprinkler
Pump Information:
Honda GX Series Engine w/ Low Oil Shut Down Sensor
IPT Self-Priming High Pressure Cast Aluminum Pump & Impeller
2" Ports, Silicon-Carbide Mechanical Seal
Discharge Hose Information:
Heavy Red 1" x 100' Hose w/ Quick Connect Fittings.
Suction Hose Information:
Spiral Helix Reinforced Contractor Grade Rubber Non-Collapsible Suction Hose w/ Suction Screen
Primary Applications:
General Irrigation Use
Acreage or Garden Irrigation
Hobby Farm Irrigation
Parks & Recreational Areas
Campgrounds
Wildlife Food Plots
Horse Pasture & Arenas
Mining Dust Suppression
Fire Protection
