1.5 HP 220V Davey Electric Booster Pump with Automatic Torrium2 Control System & Cover

1.5 HP 220V Davey Electric Booster Pump with Automatic Torrium2 Control System & Cover

Sku: SKU:DAV BT20-40-BPC

Regular price Price: $1,696.00
Regular price Sale price $1,696.00 USD
Sale Sold out
Shipping calculated at checkout.

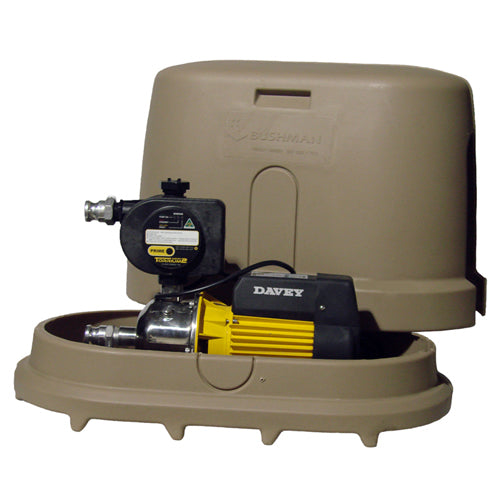

BT20-40 Booster System installed in durable poly cover for outdoor use gives you the ultimate performance in strong, even water pressure. The flow control starts the pump as soon as you switch on the tap and continues running until water is no longer required. Great for boosting sprinklers for irrigation on residential systems or sprinkler stands. Because the Davey BT20-40 uses a flow control, this 220V water pump requires a minimum of 20 PSI incoming pressure for the flow control to operate consistently. The 1.5 HP 220V Electric Water Pressure Pump adds 70 psi of boost pressure at 5 gpm, 63 psi at 10 gpm, and 54 at 15 gpm flow rate.  Max pump casing pressure not to exceed 115 psi.


Select specifications tab to view a full pump performance chart with the full range of pressures at the given flow rates for matching up to your sprinkler system capacity.

View full details

Specifications

  • **Pump and sprinkler performance may vary due to certain atmospheric conditions, elevation, distance, etc.  Pump performance data provided is at 5 feet suction lift.
1.5 HP 220V Electric Booster Pump with Automatic Torrium2 Control System & Cover

Features and Benefits

  • BT Systems are Compact, Quiet, & Easy to Install
  • High Grade Stainless Steel Pump Shaft, Impeller(s), Diffuser(s), & Casing
  • Silicon Carbide/Carbon Mechanical Seal
  • Robust Metal NPT Threads: 1" FIPT on Discharge & 1" FIPT on Suction
  • Flow Sensor Preset: On at 1.2 GPM & Off at 0.7 GPM
  • TEFC w/ IP55 Enclosure 220 Volts
  • Boosts Incoming Pressure 70 PSI (@ 5 GPM)
  • Great Reliability

Primary Applications

  • General Pressure Boosting
  • Residential Sprinkler Systems
  • Wheeled Sprinkler Carts
  • Tripod Sprinkler Stands
  • Traveling Sprinkler Systems
  • Shower Boosting
