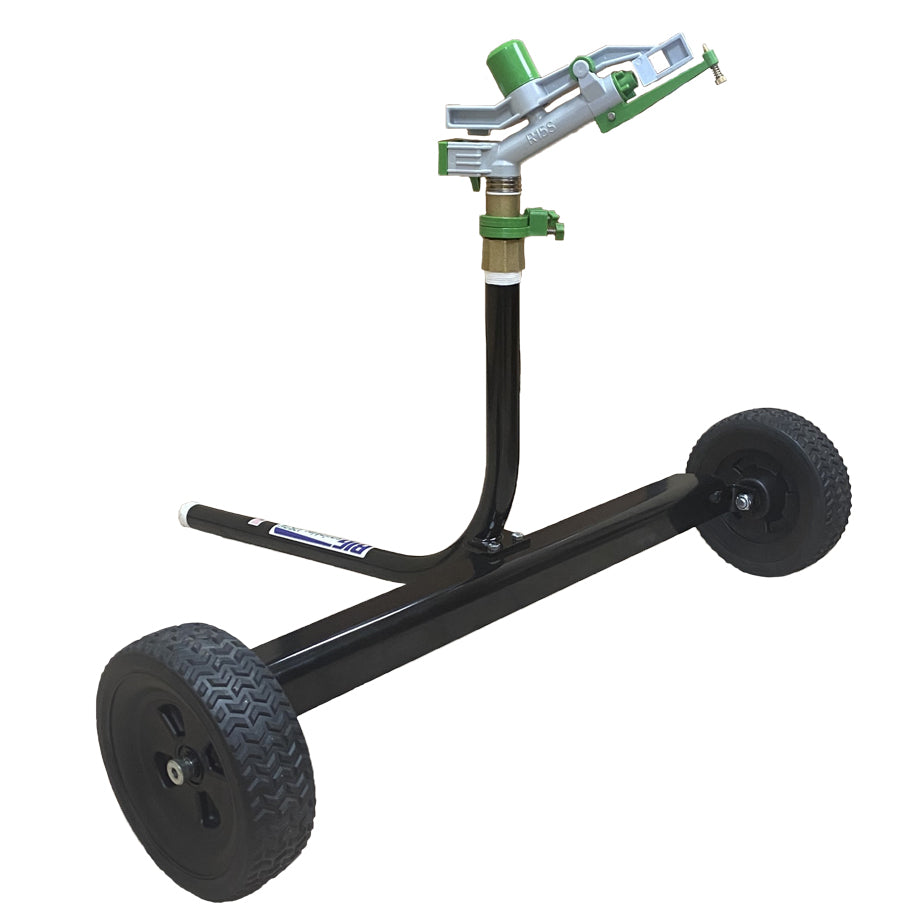

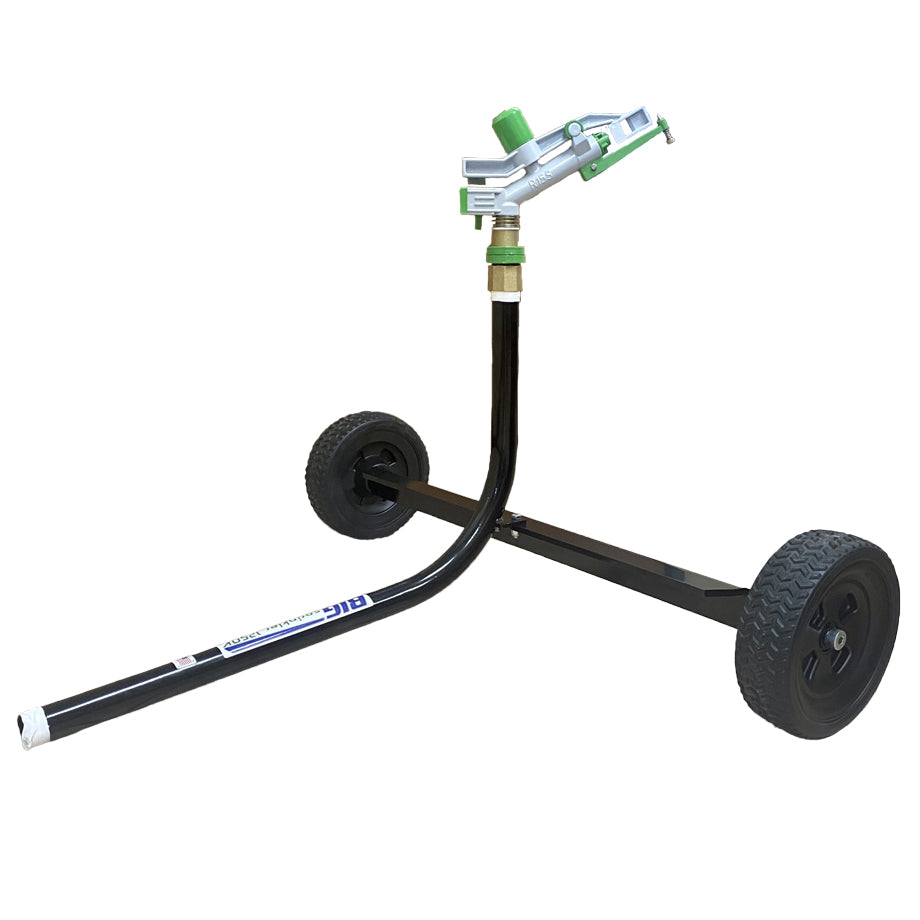

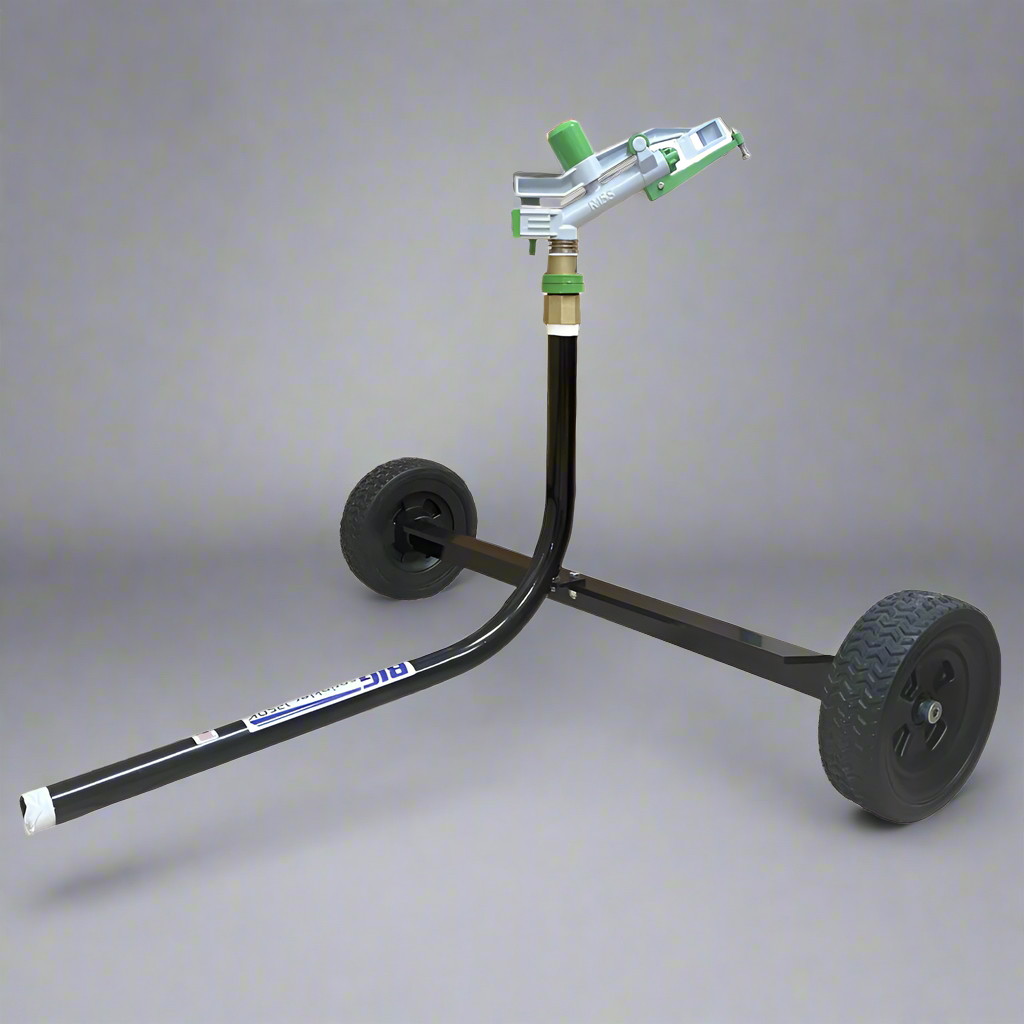

1250K-R15S Wheeled Sprinkler Cart

1250K-R15S Wheeled Sprinkler Cart

Sku: SKU:1250K-R15S

Regular price Price: $385.00
Regular price Sale price $385.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Ground Shipping within the continental US!  The 1250K-R15S Sprinkler Irrigation Cart with wheels is constructed with 1-1/4” heavy gauge steel pipe and a solid 1-1/2" steel axle for weight; complemented by a durable "baked on" powder coat finish. It also comes standard with 1-1/4" standard national pipe threads and the large commercial grade R15S Max Drilve impact style sprinkler that may be set to a full or part circle spray pattern.  This cart is a very popular choice and a great setup for 16 to 54 gallon per minute flow rates with coverages up to 150+ feet in diameter! (NOTE: This sprinkler cart is too large for Garden Hose use!)


The 1250K-R15S Sprinkler Irrigation Cart may be adapted to 1-1/2", or 2" supply lines, simply request a threaded adapter to convert to 1-1/2" or 2" at no extra charge when ordering.   (A full performance chart may be viewed in the specifications).  The 1250K-R15S sprinkler cart is most often used with our 1.5" or 2" pre-made hoses for water supply to the cart.  Also, see this cart in our BigSprinkler complete irrigation packages complimented by a pump and hoses; complete and ready to pump from your pond or stream!  * Remember to order the camlock connection needed to connect with your layflat hose, we will supply the appropriate sized bushing!


Portable wheeled sprinkler carts are an excellent and affordable option for irrigating a variety of areas such as gardens, large yards or acreages, playgrounds, natural and artificial sports fields, horse arenas or round pens for dust control, livestock grazing paddocks, mining projects, and much more. Our carts are fabricated with care and precision in our facility with heavy steel tubing and a solid axle design to prevent tipping while the sprinkler is in operation or when pulling the supply hose to re-position the sprinkler cart. This 1250K-R15S Sprinkler Irrigation Cart can be assembled in minutes and ready to irrigate wherever and whenever you want big volume irrigation!


Quality Made in the USA!!

View full details

Specifications

  • Flow Rate:16- 47GPM
  • Nozzle Sizes:8mm, 9mm, 10mm, 11mm, 12mm, 13mm
  • Pressure:30 - 80 PSI(R15S Head)
  • Trajectory:30°
  • Sprinkler Stand Body Size:1-1/4” Heavy Gauge Tubing
  • Inlet Size:1-1/4” Standard, Adaptable to 1.5" or 2"
  • Overall Height (w/ Sprinkler):33”
  • Overall Length:34”
  • Overall Width:38"
  • Total Weight:39 lb.

Features and Benefits

  • Heavy Gauge Steel Tube Construction
  • Solid 1.5” Steel Axle
  • 10” Rubber Wheel Assembly
  • Durable “Baked On” Powder Coat Finish
  • Commercial Grade Full or Part Circle Impact Sprinkler w/ Brass Base
  • Full Range of Nozzles Included (8 mm, 9 mm, 10 mm, 11 mm, 12 mm)

Primary Applications

  • General Irrigation Use
  • Gardens
  • Residences or Acreages
  • Horse Arena Dust Control
  • School Playgrounds
  • Natural Sports Turf
  • Artificial Sports Turf Cooling
  • Mining Dust Control
  • Pastures
  • Hobby Farms
  • Wildlife Food Plot
