1500H Complete Irrigation Kit w/ High Pressure Pump

1500H Complete Irrigation Kit w/ High Pressure Pump


Regular price Price: $3,595.00
Regular price Sale price $3,595.00 USD
Sale Sold out

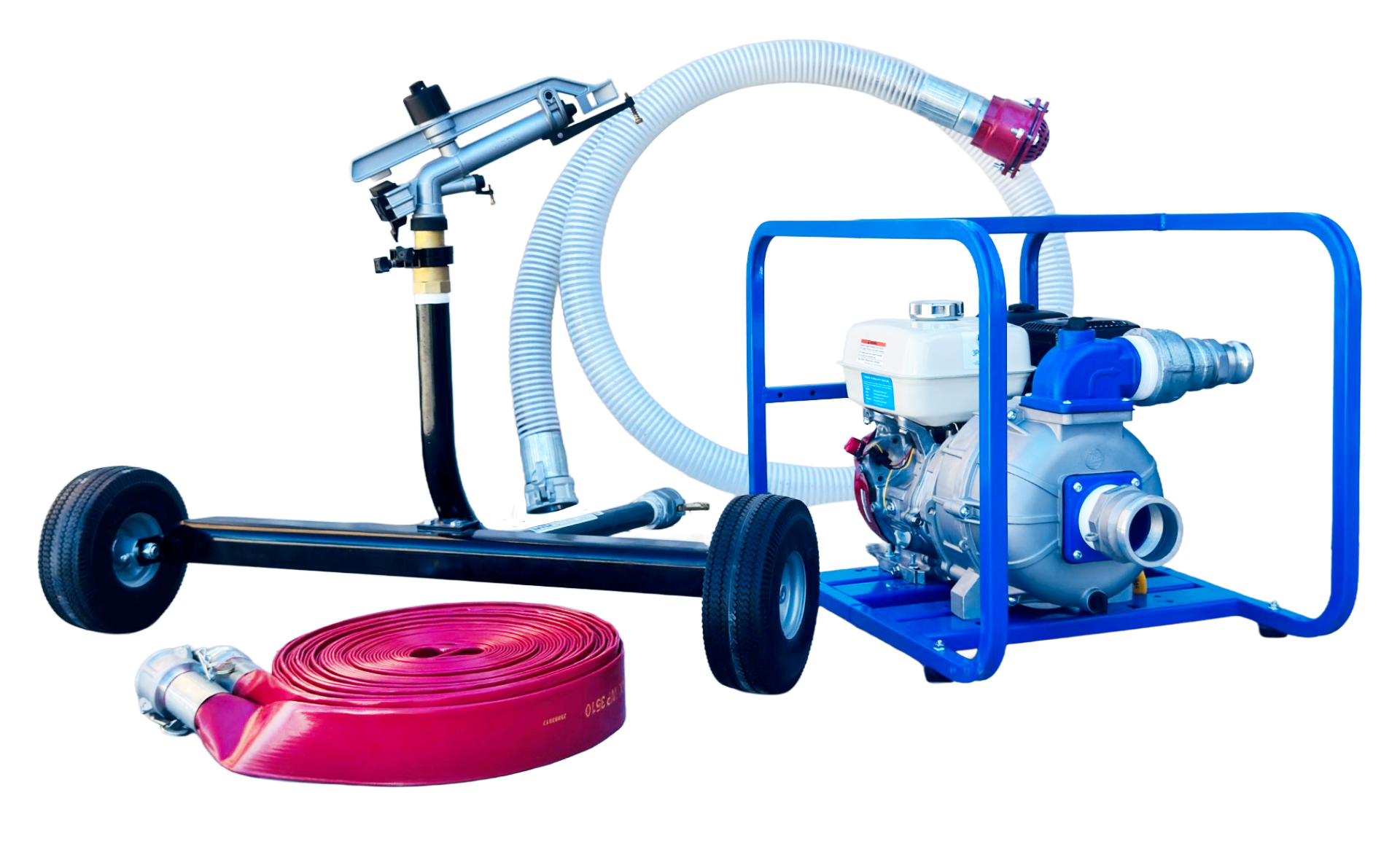

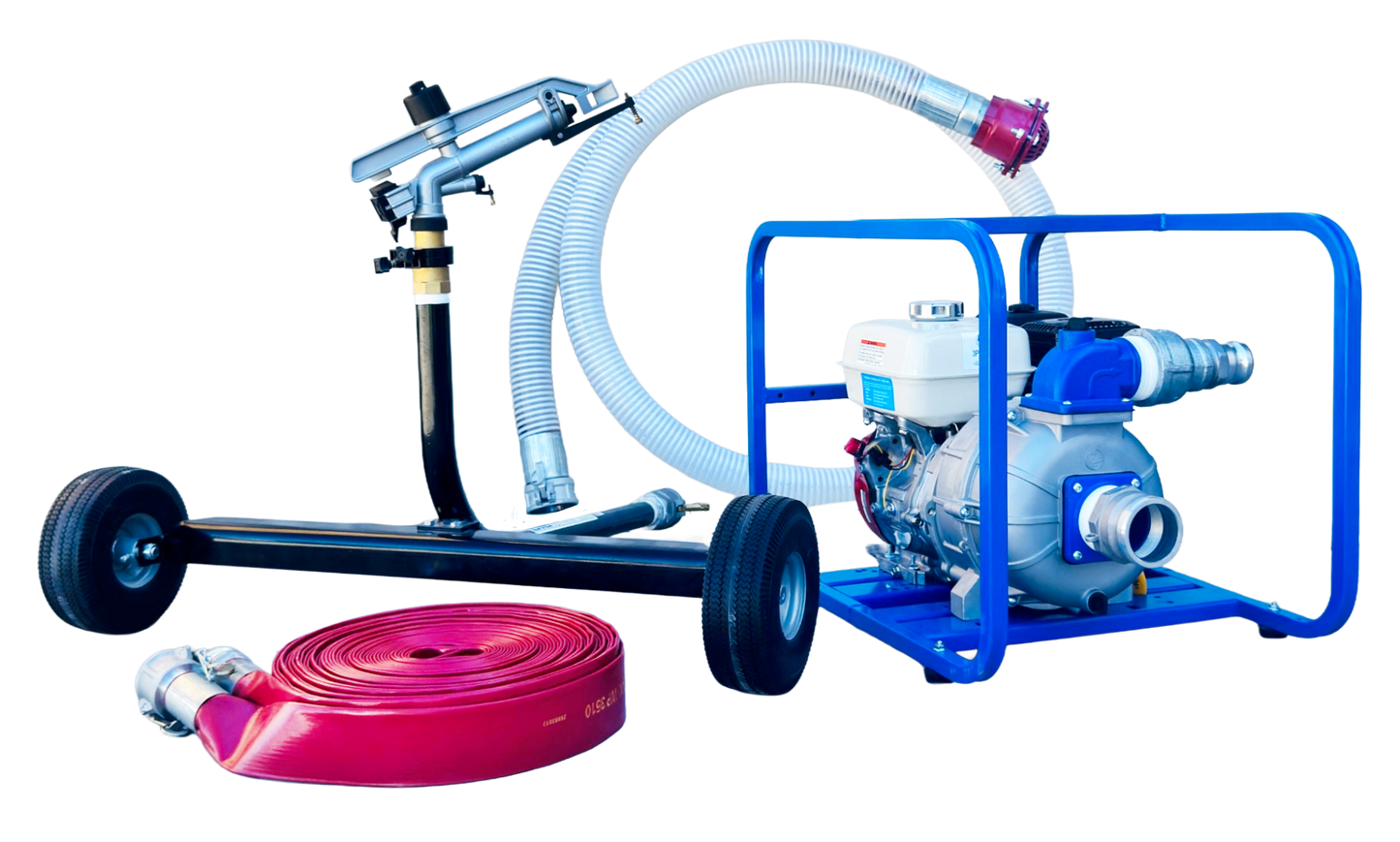

FREE FREIGHT - In the Continental USA!  The 1500H Complete Lawn Irrigation Kit with high pressure pump is the next step up from our 1250K kit and includes the Hidra sprinkler on our NEW 1500H heavy duty sprinkler cart that is capable of between 30 and 140 gallons per minute flow rate!  This kit is capable of covering up to a 200 foot diameter wetted circle!  The kit includes, 15 feet of 3" suction hose with strainer, 100 feet of standard duty 2" discharge hose with quick connects, 1500H sprinkler cart and a heavy-duty 9 HP Honda High Pressure Water Pump for irrigation.

 The pump is a reliable 9HP Honda Commercial Series Engine and quality American made self-priming high pressure 3" pump end capable of providing high volumes and pressures up to 88 PSI.  Extra lengths of our 2" x 50 or 100 ft hose assemblies may be added up to approx. 500 feet depending on pumping criteria such as elevation from pump to sprinkler, maximum suction lift (feet), etc.  Feel free to consult your representative for help with design questions.

Our High-Pressure Irrigation pumps can't be compared with other standard 3-inch water transfer pumps that are on the market! These pumps are unmatched with quality internal components that are designed and machined for maximum pressure performance for the purpose of irrigation and fire fighting where high pressures need to be maintained.

Our pre-assembled pump kits are quick and easy to setup!  You can be irrigating in literally minutes from the time you receive your kit.  First, unroll and quick connect the 100 ft. hose provided from the pump to the sprinkler cart. Then, quick connect the 15 ft. suction hose provided, prime and start the pump.... and watch the water fly!  This Kit provides massive volume and coverages.  The 1500H Complete Lawn Irrigation Kit with high pressure pump is supplied with quick connect fitting that attaches to the hose and a full range of nozzles so that you can meet your desired water pattern!

View full details


    Sprinkler Cart Performance:
  • Flow Range:  30-140 Gallon per Minute
  • Coverage:  Up to 200 Feet Diameter Wetted Circle
  • Pump Performance:
  • Max Flow:  180 Gallons per Minute Open Discharge
  • Max Pressure:  88 PSI @ 10 Gallons per Minute
**Pump and sprinkler performance may vary due to certain atmospheric conditions, elevation, distance, etc.  Pump performance data provided is at 5 feet suction lift .
1500H Complete Irrigation Kit w/ High Pressure Pump

Features and Benefits

  • Sprinkler Cart Information:
  • Heavy Duty 1.5" Steel Body
  • Solid Axle & Commercial Grade Full or Part Circle Sprinkler.
  • Made in the USA
  • Pump Information:
  • Honda GX Series Engine w/ Low Oil Shut Down Sensor
  • IPT Self-Priming High Pressure Cast Aluminum Pump & Impeller
  • 3" Ports
  • Silicon-Carbide Mechanical Seal.
  • Discharge Hose Information:
  • Heavy Duty 2" x 100' Red Collapsible Hose w/ Quick Connect Fittings Rated at 180 PSI.
  • Suction Hose Information:
  • Spiral Helix Reinforced Contractor Grade Rubber Non-Collapsible Suction Hose w/ Suction Screen

Primary Applications

  • General Irrigation Use
  • Acreage or Garden Irrigation
  • Hobby Farm Irrigation
  • Parks & Recreational Areas
  • Campgrounds
  • Wildlife Food Plots
  • Horse Pasture & Arenas
  • Mining Dust Suppression
