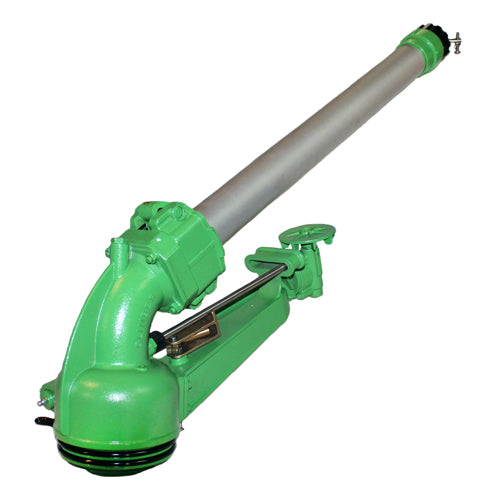

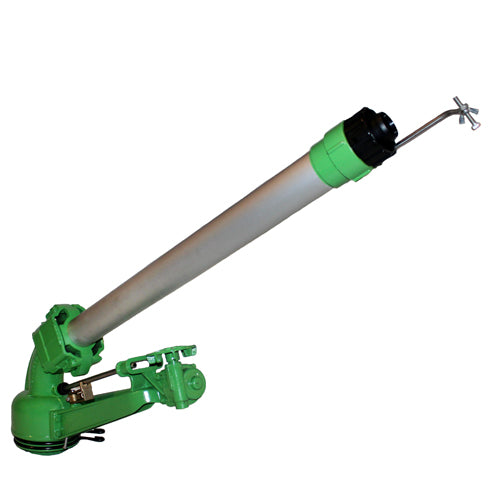

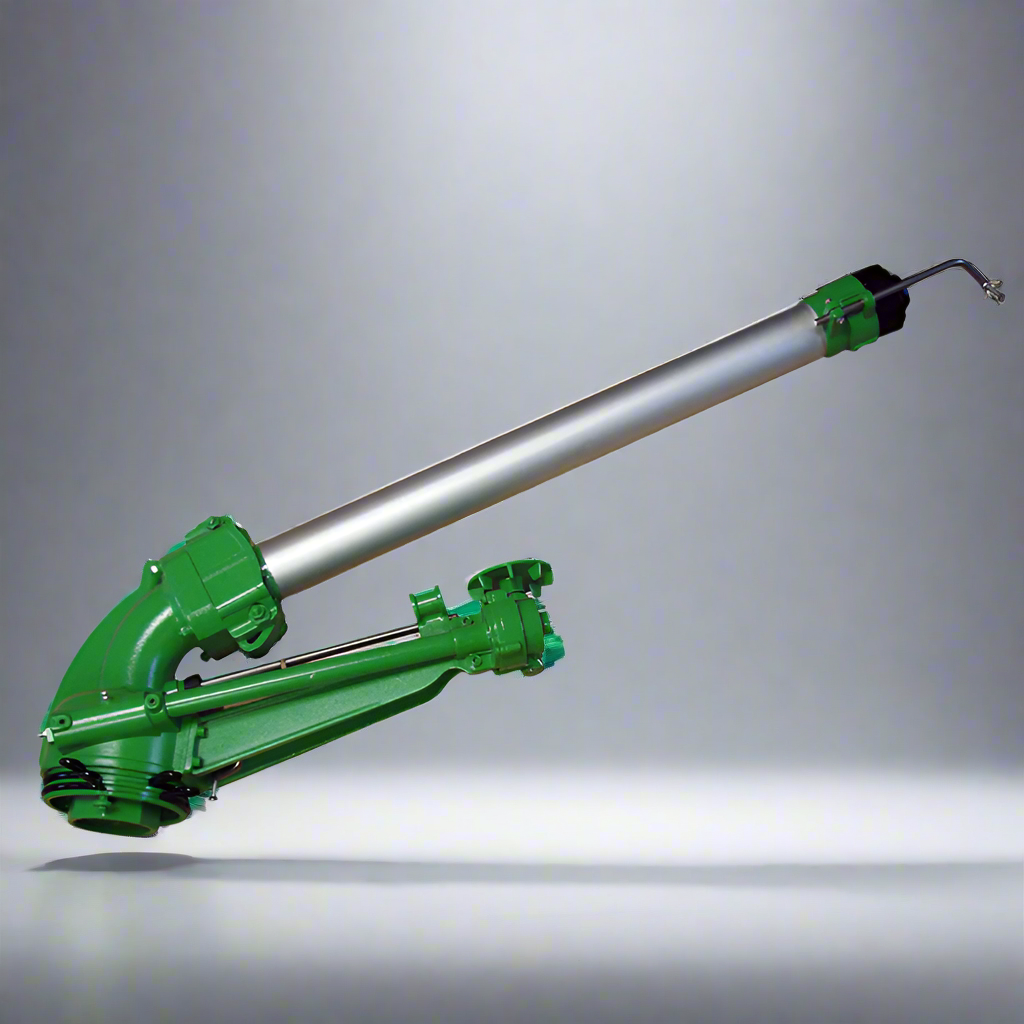

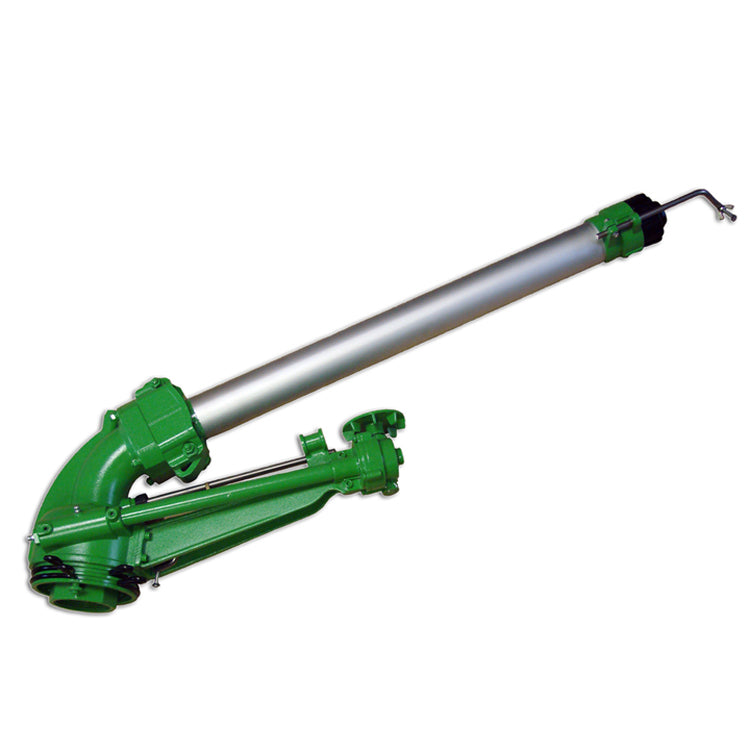

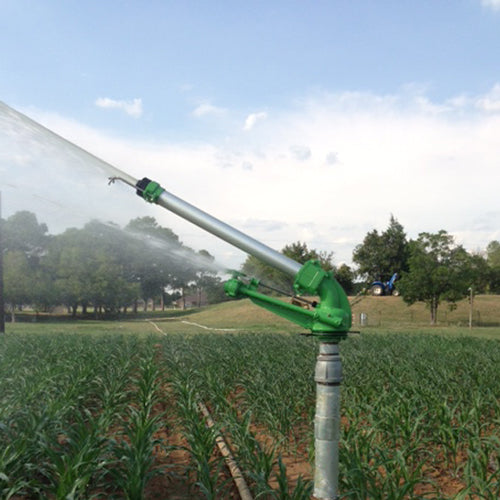

Climber Sprinkler (Variable Angle)

Climber Sprinkler (Variable Angle)


Regular price Price: $1,554.00
Regular price Sale price $1,554.00 USD
Sale Sold out

NEW VARIABLE ANGLE!!  The Variable Climber Angle Sprinkler is used extensively for mining, construction, and reclamation project. The variable angle trajectory is needed for mining facilities, log mill companies; watering rock, dirt piles, or hillsides.  The unique, easily adjustable variable angle feature of the Variable Climber Angle Sprinkler allows the user to select a trajectory between 18 and 46 degrees.  The Climber Sprinkler is also used in agriculture as well as many other types of applications.

The Climber Sprinkler is constructed from quality materials which make it very unique.  The Climber Sprinkler is a great alternative to impact style sprinklers when smooth and gentle performance is desired with no "impact vibration". This sprinkler has a 2.5" female pipe thread connection, adjustable jet stream breaker, and allows coverage up to 440 feet in diameter with flow ranges from 170 to 600 gallons per minute.

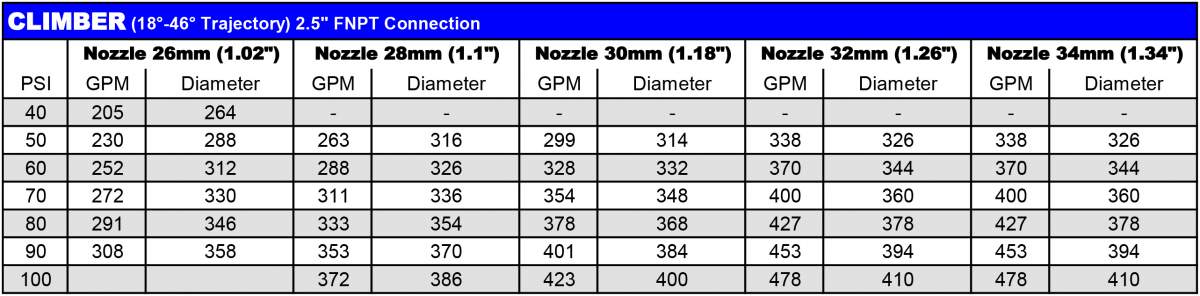

See specifications tab for full performance information.

Gear Drive Sprinklers are smooth in action, gentle on tender crops, and can operate on lower pressures than larger sprinklers.  Continuous rotation, slow reversing speeds, and uniform water patterns make Gear Drive Sprinklers an ideal selection for mounting on stationary gun stands, traveling irrigators, center pivots, and much more.  No tools are required to change the operation from part circle to full circle; nozzles are interchangeable by hand.

View full details


  • Water Jet Length:137' - 220' (Radius)
  • Flow Rate Range: 170-600 gal/min.

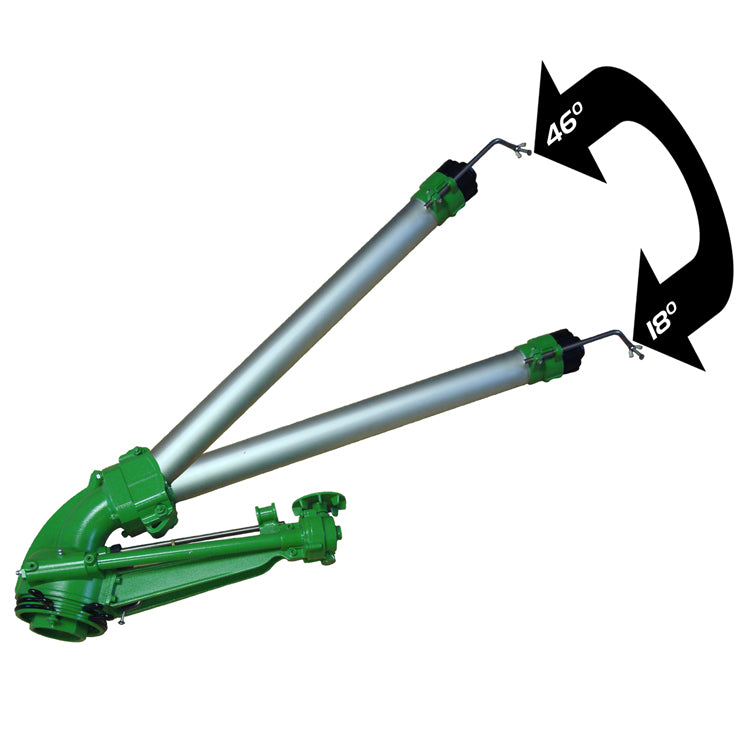

  • Trajectory:  Variable Angles from 18° to 46°

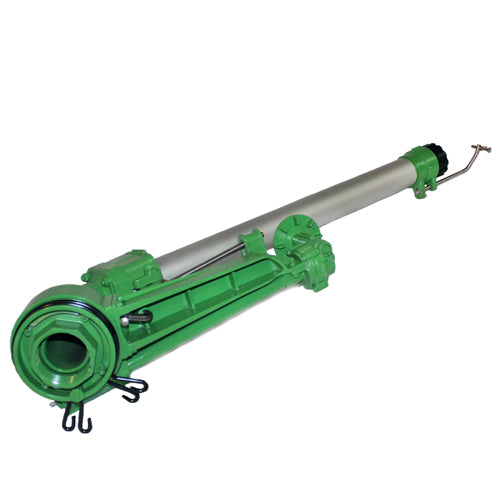

  • Inlet Size:  2.5” Female Standard National Pipe Thread
**These calculations are theoretical test numbers under perfect conditions and do not take into consideration wind, terrain, or other natural acts of nature.

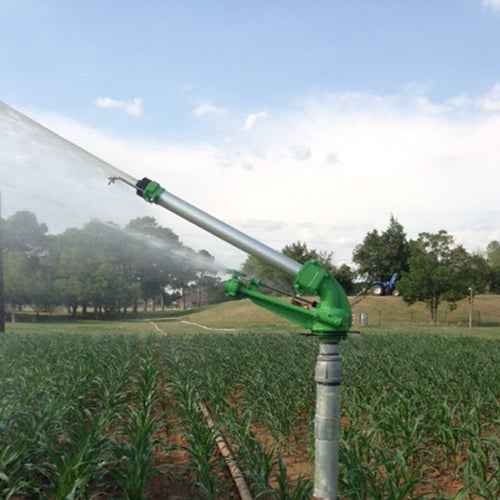

Climber Sprinkler (Variable Angle)

Features and Benefits

  • Smooth, Continuous, Gear Drive System that Slowly Rotates the Sprinkler Head at a Uniform Speed
  • Adjustable Stops for Full Circle Coverage or Any Part of a Circle
  • Adjustable Jet Breaker
  • Provides Uniform Water Distribution over the Irrigated Area Suitable for Low Flow & Low Pressure Applications
  • Variable Angle between 18 and 46 degrees

Primary Applications

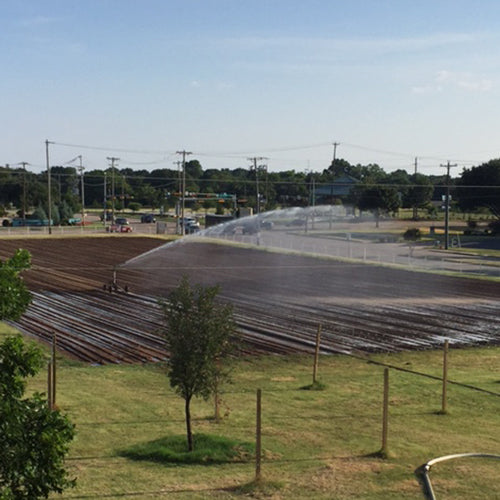

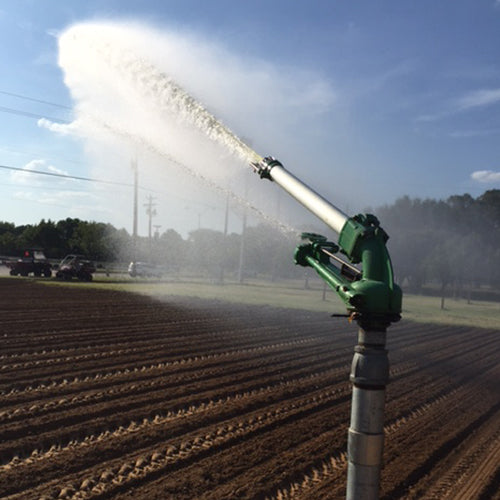

  • Stationary Applications: Waste Water Applications, Coal Dust Control for Mining Facilites, Feedyard Dust Suppression, Lumber and Log Wetting at Lumber Mills, General Crop Irrigation and Wildlife Food Plots.
  • Traveling Irrigation Systems: Smooth, Uniform Performance on Travelers
